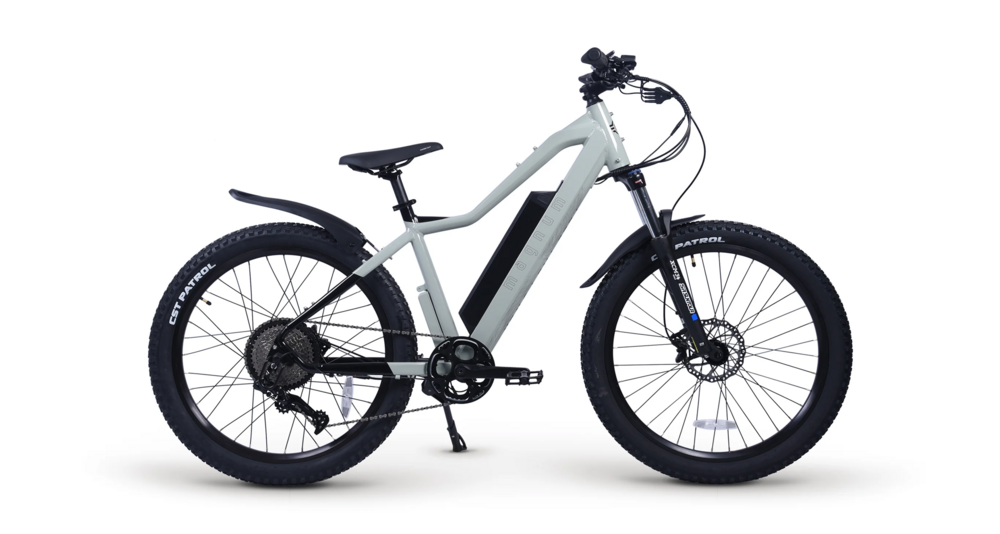

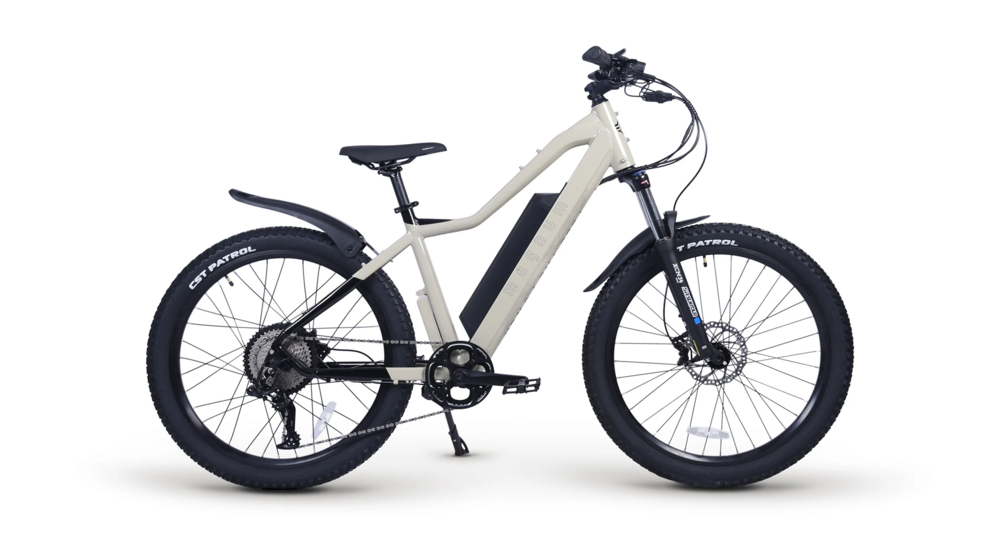

Magnum Bikes Peak T7
Details
The Peak T7 begins where the road ends! It has a torque pedal assist sensor that combines power from the rider and the motor for the ultimate in smoothness and control. A wide range drive train, robust power system make the Peak T7 an ideal choice for trail riding.
Highlights:
- Category: Mountain
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: High-step, MTB Cross-Country
- Seating: Active
- Perfect For: Gravel / Trails / Off-road
THE BATTERY.
Long-range (up to 65 miles) battery for the freedom and power to tackle longer rides
20Ah
65 Miles (105 Kilometers) Max Range
10 Hours Charge Time
TORQUE-SENSING PEDAL ASSIST
Amplify your effort.
The torque-sensing pedal assist feature adds just the right amount of power from the motor to amplify your effort. It feels just like riding a regular bicycle, but with greater ease and comfort.
| Seat Tube | 19" (48 cm) |
|---|---|
| Reach | 14.5" (37 cm) |
| Stand Over Height | 31" (78.5 cm) |
| Virtual Top Tube Length | 23.25" (59 cm) |
| Min Saddle Height | 22" (56 cm) |
| Max Saddle Height | 31" (78.5 cm) |
| Width | 28.75" (73 cm) |
| Wheelbase | 45.75" (116 cm) |
| Length | 74" (188 cm) |
| Total Weight | 66 lbs. (30 kg) |
| Battery Weight | 9 lbs. (4 kg) |
| Recommended Minimum Rider Height | 5’6" |
Specs
| Fork | XCM34-Boost |
|---|---|
| Stem | Magnum 60mm |
| Tires | CST Patrol 27.5 x 2.8" |
| Brakes | Logan Hydraulic Disc Brakes |
| Saddle | Selle Royal Essenza+ |
| Crankset | Aluminum Alloy, 42T, 170mm |
| Shifters | A11-X 11-Speed |
| Tape/Grips | Black |
| Motor | Bafang Rear Gear Hub-Drive Motor 750W Nominal Output. Up to 28 mph with Pedal Assist, 20 mph with Throttle. |
| Pedals | Wellgo |
| Battery | 48V, 20Ah, 960Wh |
| Charger | 30-60 miles per charge. |
| Controller/Display | Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD. Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time. Torque Sensing Pedal Assist, Trigger Throttle, Walk Mode. |
* Subject to change without notice.
Part Numbers
| Option | UPC |
|---|---|
| Tan/Black / Large / 27.5-inch | 789554756259 |
| Forest/Black / Large / 27.5-inch | 789554756235 |
